Synth-Werk - SW 904A Low Pass Filter

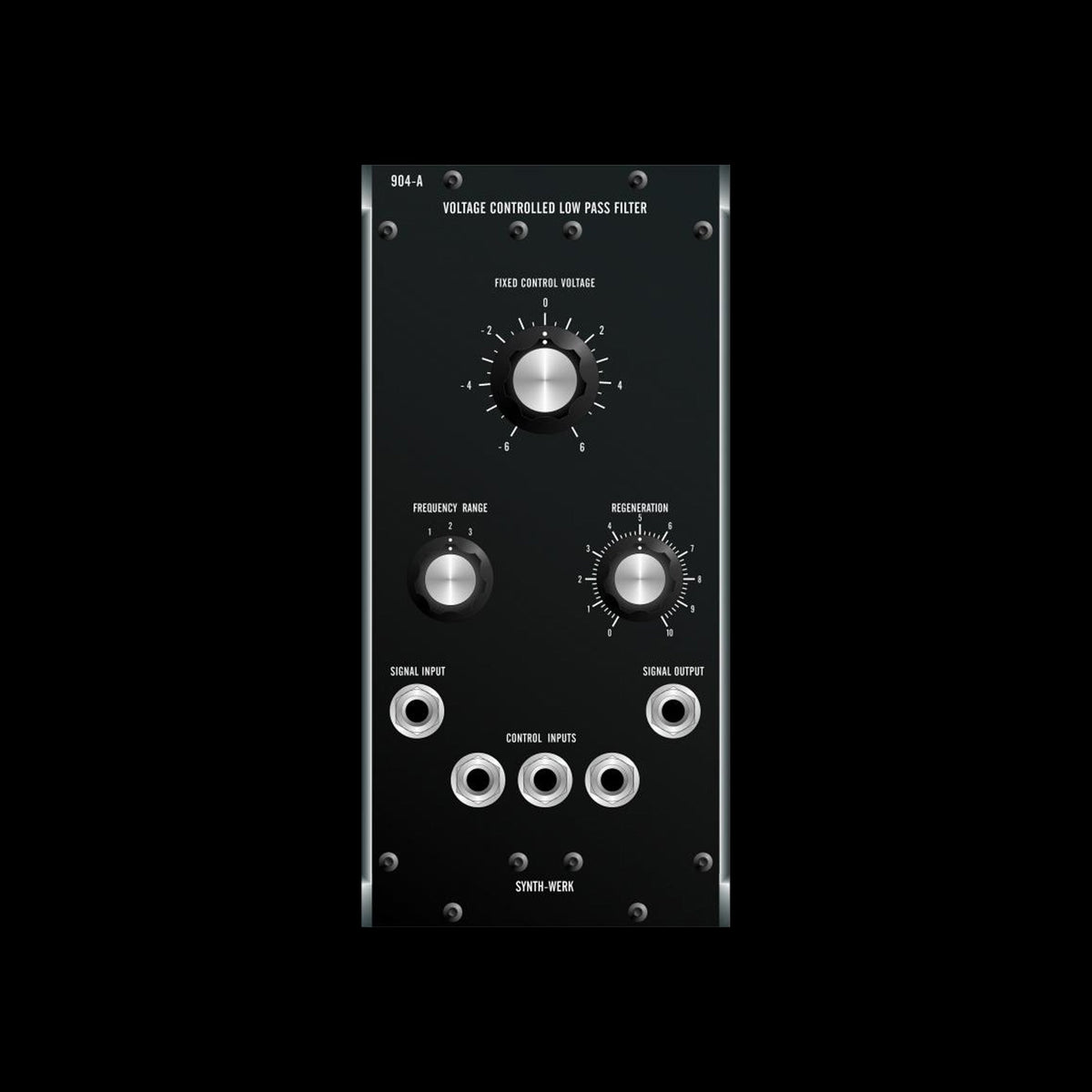

SW904A Voltage-Controlled Low Pass Filter attenuates frequencies above the fixed control voltage cutoff point at a rate of 24 dB per octave. The cutoff frequency is voltage controlled through the control input jacks. The sum of the applied control voltages doubles the frequency of the cutoff point for each one Volt increase. The regeneration potentiometer varies the amount of internal feedback, creating a resonant peak at the cutoff frequency. This resonant peak will break into oscillation at clockwise settings of the regeneration potentiometer, creating a voltage controlled sine wave generator. The fixed control voltage potentiometer covers a 12 Volt (octave) range. The overall range of the FCV potentiometer is determined by the Frequency Range switch, which moves the frequency cutoff range in twooctave steps.

This Module is based on the original design from 1970
